Hyosung Menu Changes for ap 06.03.10 or newer

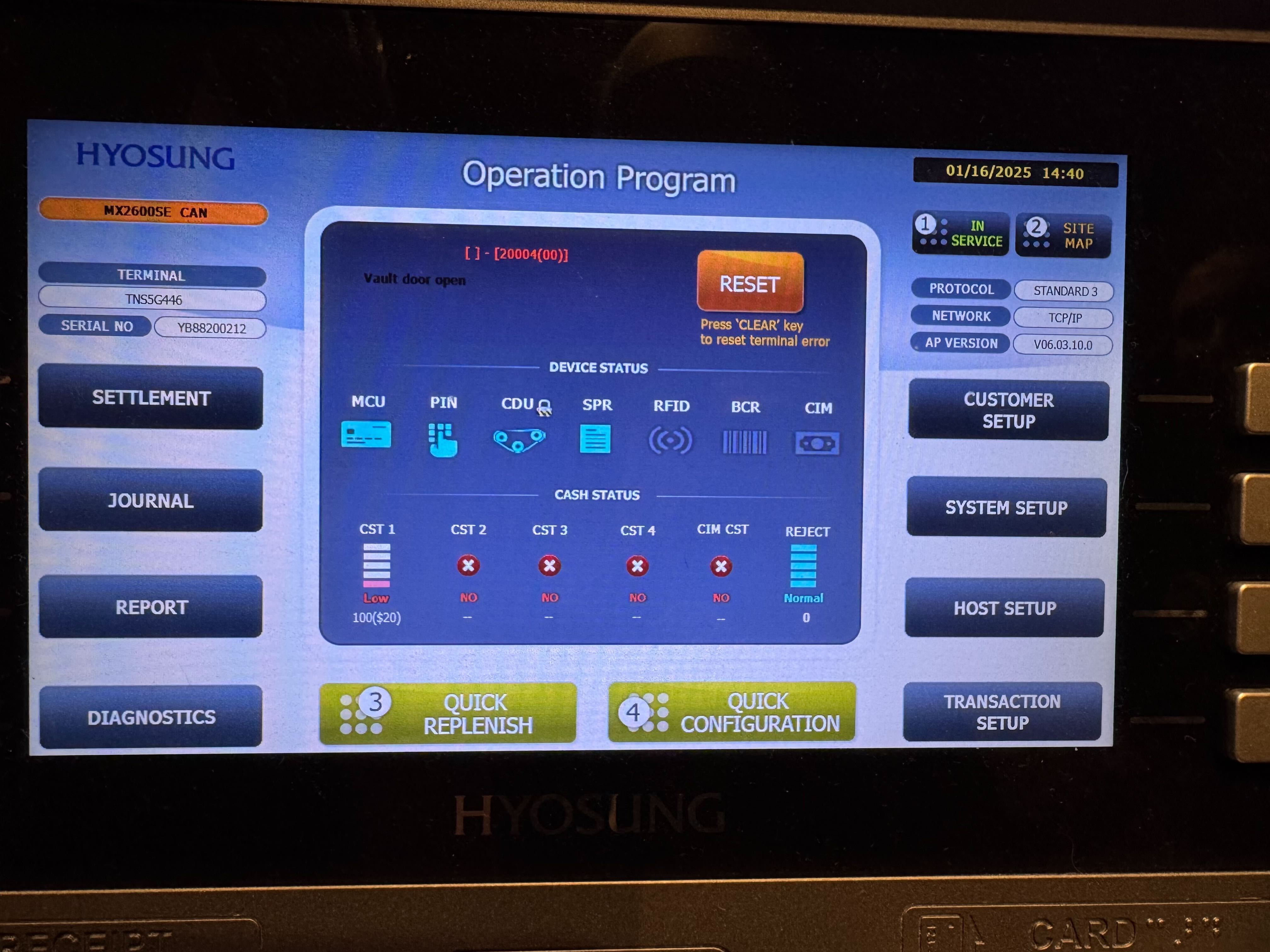

From the Operation Program screen (Main Menu)

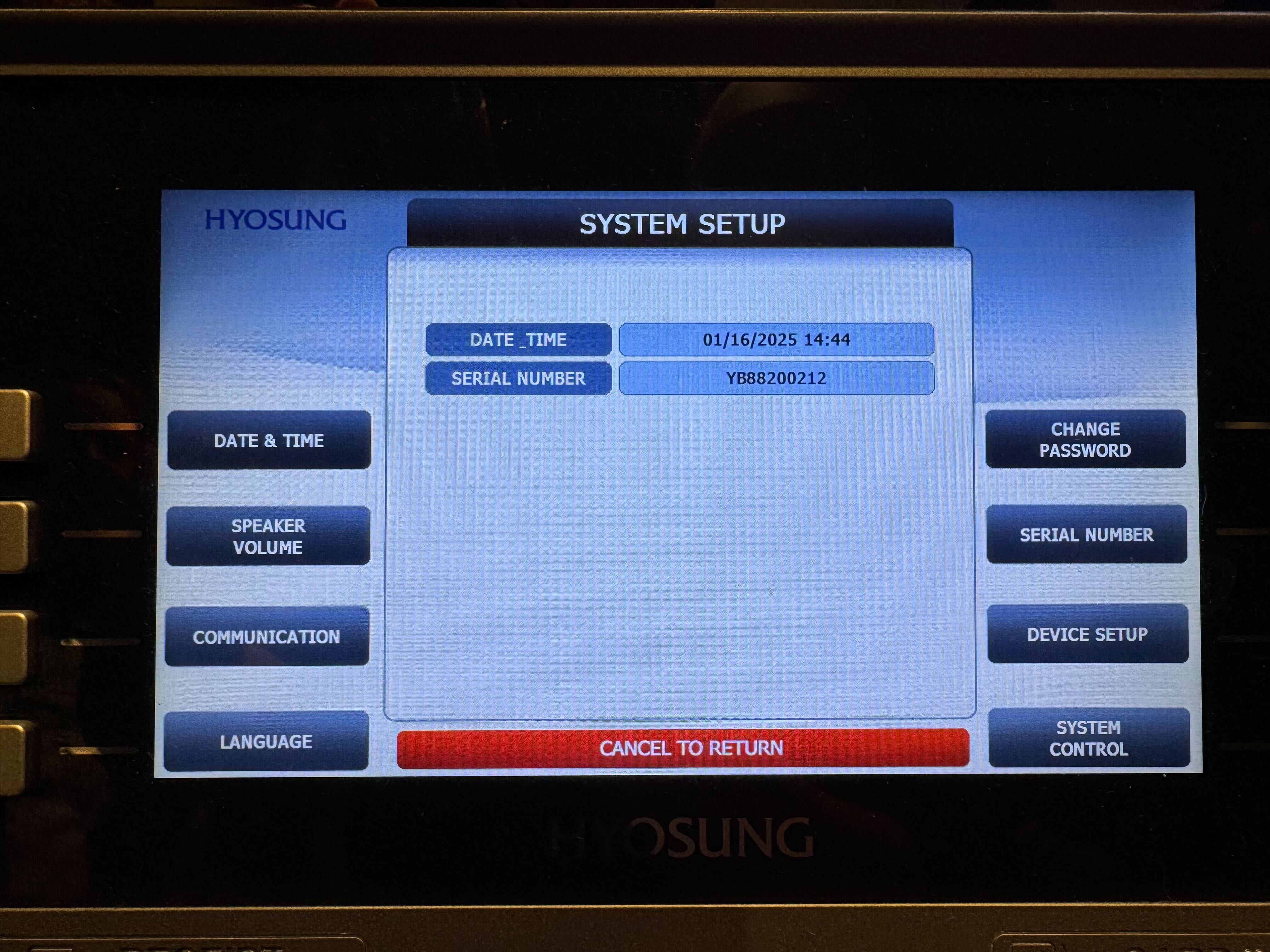

System Setup

• Communication > Terminal IP > DHCP or Static IP

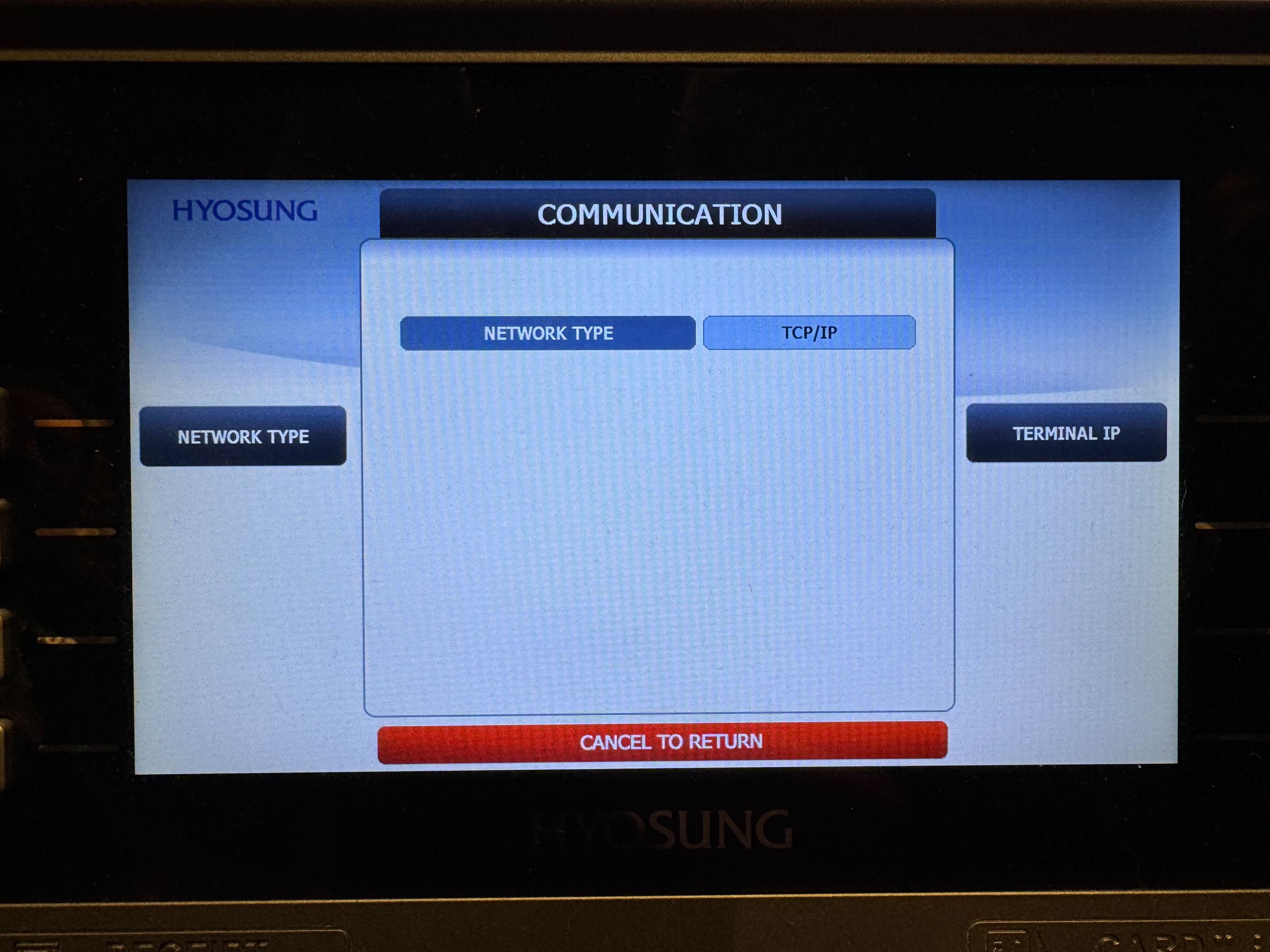

• Communication
  • Network Type >TCP/IP
  • Terminal IP > DHCP or Static
  • Static IP:
  • IP Address: 192.168.0.55
    o  Subnet Mask: 255.255.255.0
    o  Default G/W: 192.168.0.1
    o  DNS Server: 192.168.0.2

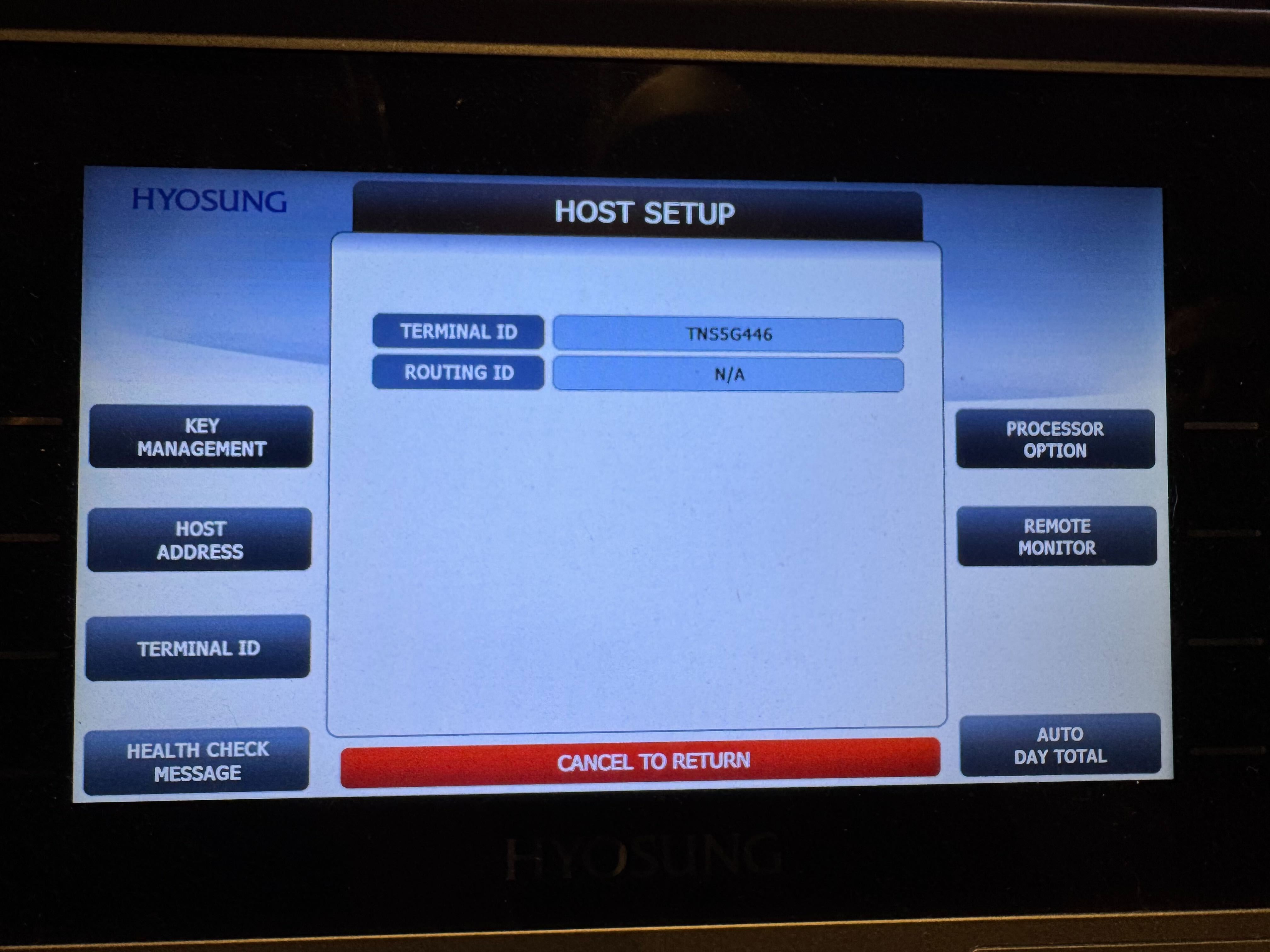

Host Setup

Host Address

• NON TLS address
• URL En/Disable: Enable
• Host Address 1: 192.168.0.52
•  Host Port 1: 8000
• Host Address 2: 192.168.0.52
•  Host Port 2: 8000

TLS ADDRESS

Host Address 1: TLS.DPLWIRELESS.COM

Host Port 1: 8000

Host Address 2: TLS.DPLWIRELESS.COM

Host Port 2 : 8000

Processor Option

TLS > TLS v1.2

TLS Cert > Enabled/Disabled

Message Format o Choose: Standard 1, or Standard 3 (per your processor)

• TCP/IP Type: Standard, or Visa Frame (per your processor)

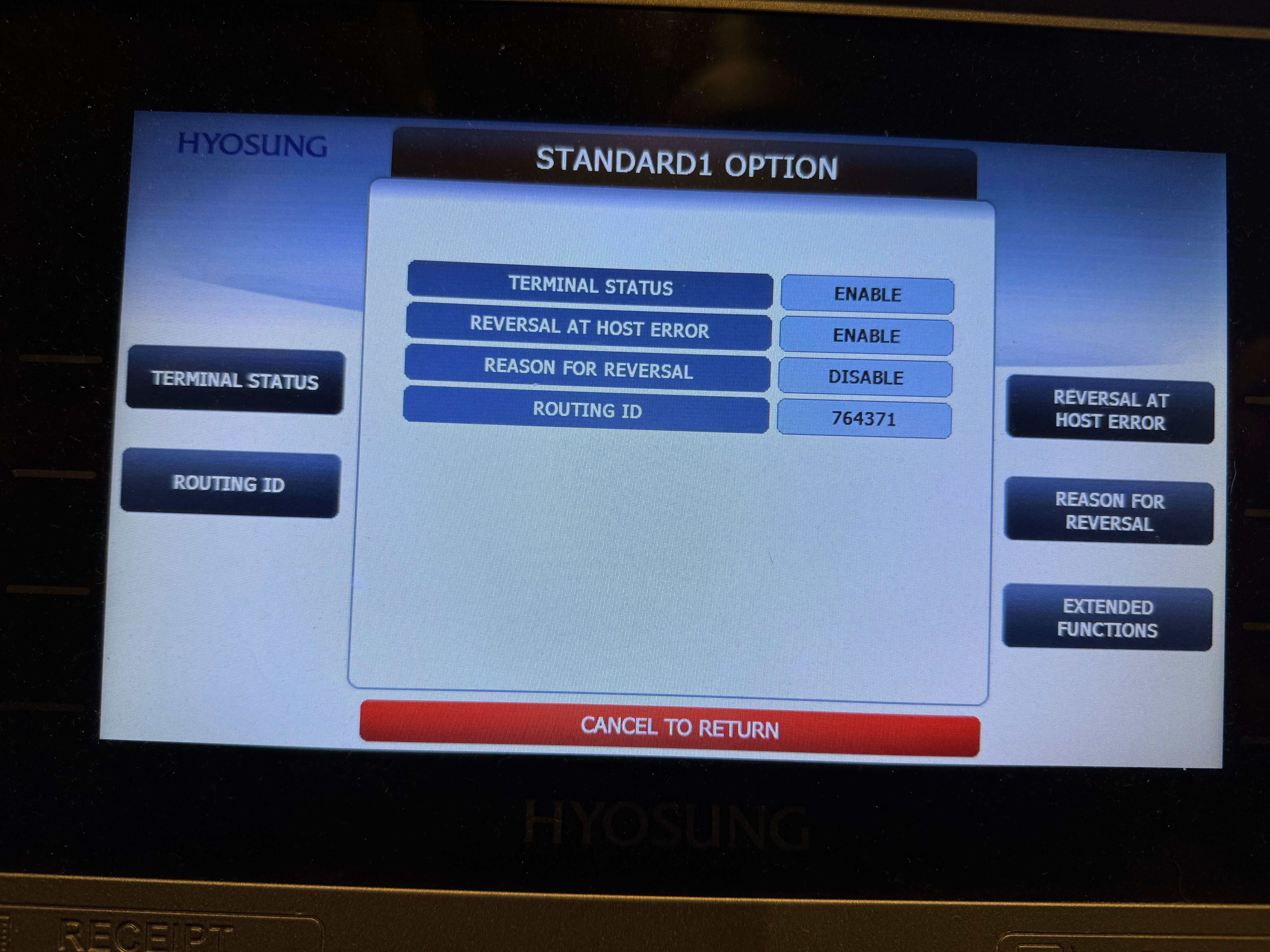

Standard 1 options

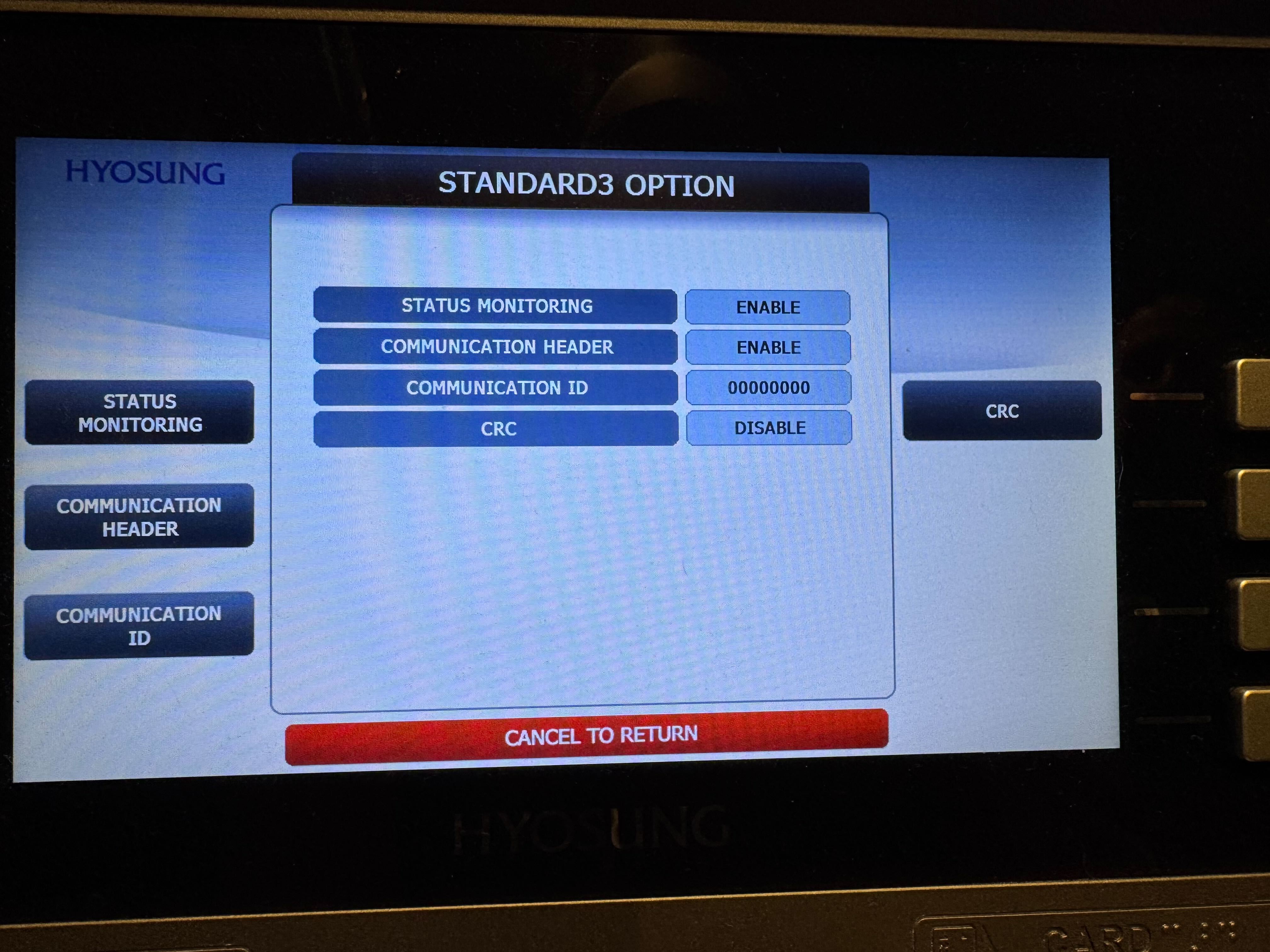

Standard 3 Option
