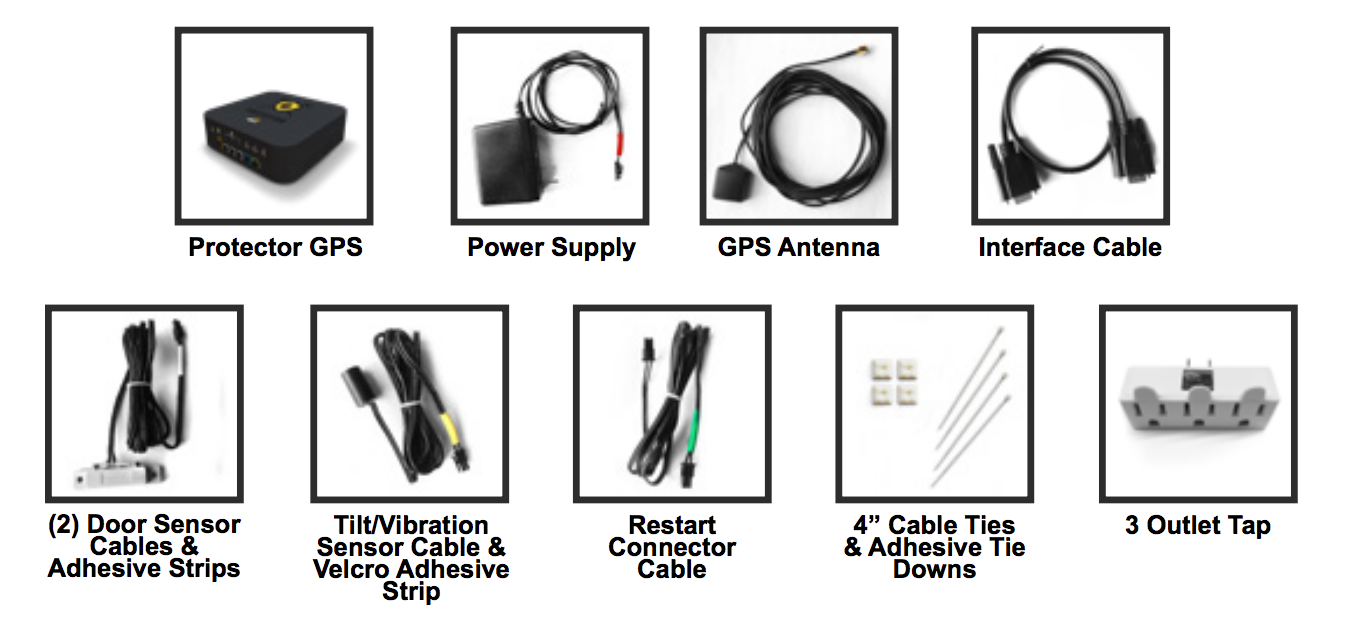

Equipment Supplied

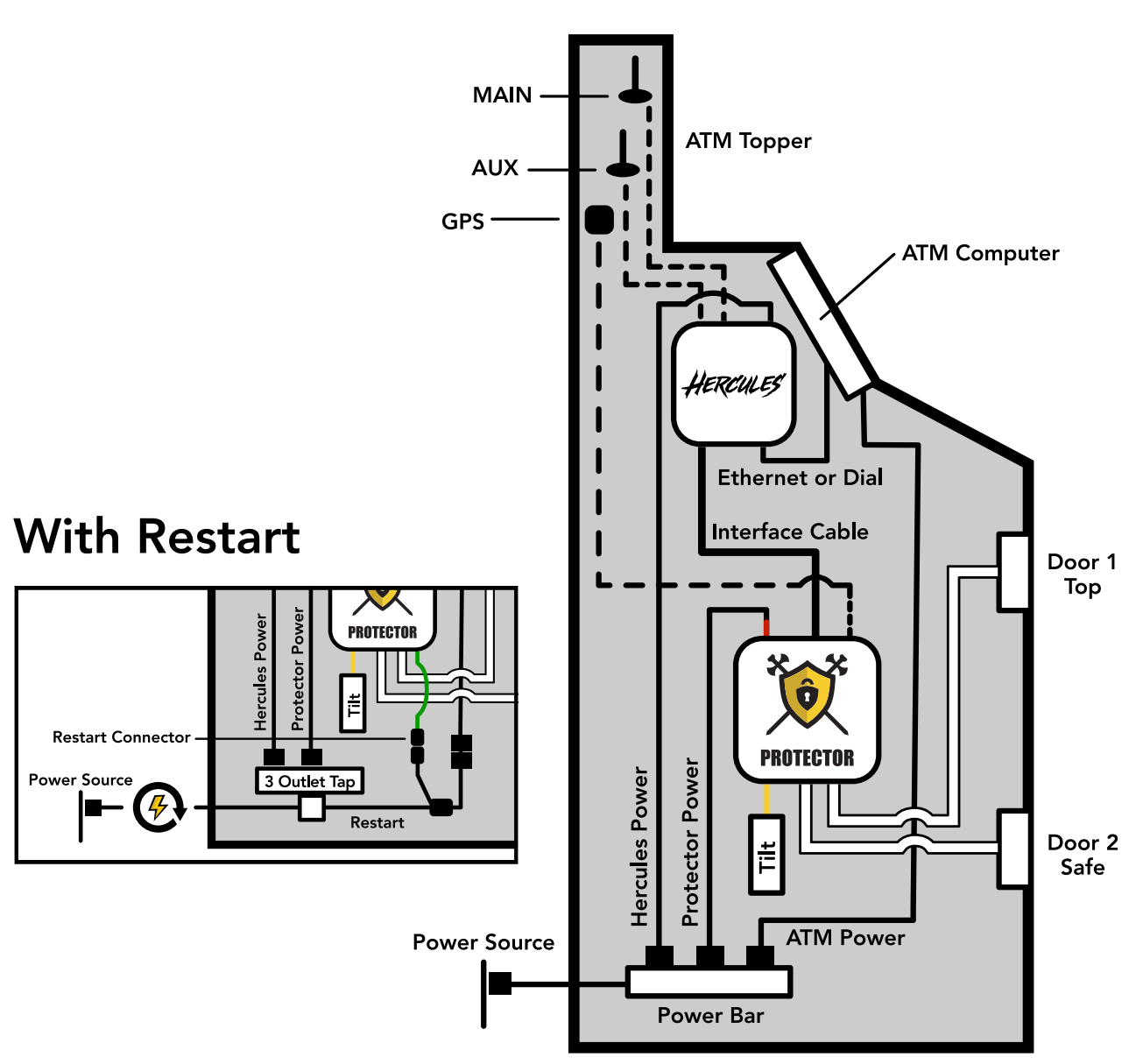

ATM Configuration
Before you Begin
Hercules Portal Login
Ensure you or a member of your team has a login to the Hercules Portal. Portal access is required to configure and receive alerts from the Protector GPS. For instructions on how to add team members to your Hercules Portal account and on how to properly configure SMS text and email alert settings, please click here.
IMPORTANT
The Protector GPS is not compatible with all Hercules modem versions. For information on which Hercules modem versions the Protector GPS is compatible with please click here.
Connecting the Protector GPS
Step 1
If powered on, disconnect the Hercules from its power source.
Step 2
Connect the Hercules to the Protector with the interface cable.
Step 3
Connect the GPS antenna to the Protector by screwing the SMA connector into the antenna jack of the Protector. In a discrete location, near the top of the asset, and not within a metal enclosure, mount the GPS antenna using the magnetic mount, a minimum of four inches away from the MAIN and AUX antennas of the Hercules.
Note: Metal enclosures hinder the GPS antenna from signalling the Protector’s GPS position.
Step 4
Mount the cable-free, magnetic door sensors to the swing side of the desired doors to be monitored.
Step 5
Mount the sensor ends of the door sensor cables opposite the cable-free magnetic door sensors, a maximum of half an inch apart when the doors are closed.
Step 6
Insert the connector end of the door sensor cables into the desired door ports of the Protector.
Note: When powered on, and the door sensors are within a half inch of each other, the door sensor LEDs will be lit green and when the doors are open the LEDs will be lit red.
Step 7
Mount the sensor end of the tilt/vibration sensor cable to an inside, vertical surface using the Velcro adhesive strip.
Note: Tilt sensor orientation affects alarm sensitivity.
- Vertical = High Sensitivity
- Horizontal = Medium Sensitivity
- Upside Down = Low Sensitivity
Step 8
Insert the connector end of the tilt/vibration sensor cable into the tilt port of the Protector GPS. When powered on, the tilt LED will be lit green. When tilting or vibration is detected the tilt LED will be lit red.
Step 9
Connect the power supply cables to the Hercules and the Protector GPS respectively and connect them into a power source.
Note: Do not plug the Protector GPS into a backup battery power supply. Doing so will prevent the power cut alarm from being triggered. If installing with the Restart, connect the Restart to the Protector GPS using the restart cable. Plug the Protector GPS and Hercules into the 3 outlet tap. Plug the 3 outlet tap into the white, un-switched outlet of the Restart. Plug the ATM power cable into the black, switched outlet of the Restart, then plug the Restart into a power source.
Step 10
Secure the Protector GPS by placing it in a discrete location (E.g. inside the safe) within the asset, to reduce the likelihood of it being discovered by others.
Test Functionality
Door Sensors
Step 1
Close the doors equipped with sensors and observe the door LEDs turn green in the Hercules Portal.
Step 2
Open the doors equipped with sensors and observe the door LEDs turn red in the Hercules Portal.
Step 3
Confirm that the door open alerts are received via the configured channels to the designated portal users.
Note: If the door LEDs are not green when the doors are closed, adjust the position of the door sensors until they are ¼” apart when the doors are closed (maximum ½” apart) and re-test.
Vibration Sensor
Step 1
Confirm that the vibration sensor is successfully connected by verifying that the vibration LED is green on the Protector GPS or in the Hercules Portal.
Step 2
Shake or tilt the connected device to observe the vibration LED turn red.
Step 3
Confirm that the tilt alert is received via the configured channels to the designated portal users.
Power Cut Sensor
Step 1
Confirm the power LED is green on the Protector GPS or in the Hercules Portal.
Step 2
Disconnect the Protector GPS' AC adapter from its power source and confirm that the power cut alert is received via the configured channels to the designated portal users.
Note: Triggering a tilt alert and power cut alert within 30 seconds of one another will trigger a theft in progress alert.
GPS Tracking
Step 1

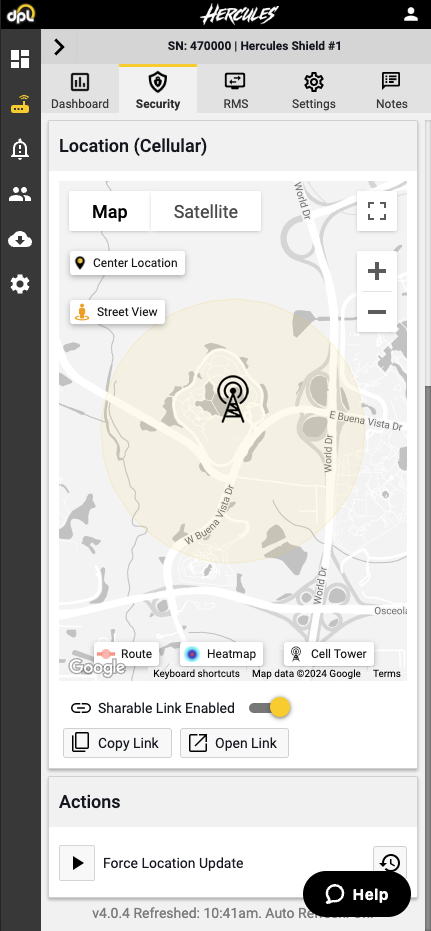

Navigate to the Hercules Shield's Security tab and verify its GPS location is accurate on the Location Map.
If the GPS location is not accurate, select "Force Location" with the Actions section, then from the dialogue box that opens, choose whether you would like to Force the Location Update now or in the future and select "Yes".
If the GPS location is still not accurate after forcing the location to update, contact DPL support.
