Connecting the Restart

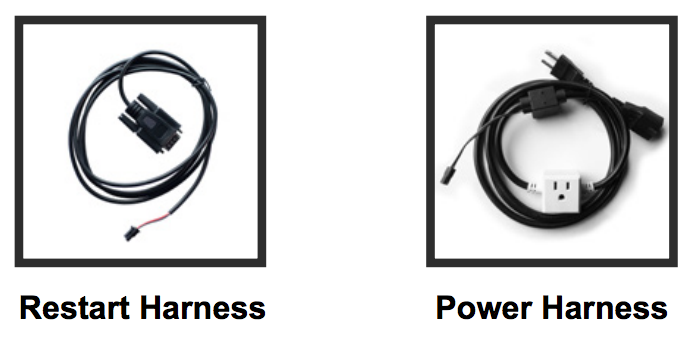

Connect the 15-pin adapter of the restart harness to the Hercules.
Join the 2-pin connector of the power harness to the 2-pin connector of the restart harness.
Plug the ATM’s power cord into the black female end of the power harness and plug the male end of the power harness into a power outlet.
Note 1: The white un-switched power outlet can be used to power other items like the Hercules. Items plugged into it will not be power cycled when the restart command is sent.
Note 2: If also using the Protector, omit Step 2 and join the 2-pin connector of the power harness to the 2-pin connector of the Protector.
Using the Restart
Log in to the Hercules Portal at https://hercules.dplwireless.com and search for the Terminal ID of the asset.
Select the Terminal in the list on the left to display its dashboard.
Select Reboot ATM in the top right corner of the device dashboard
Select (Hard) Hercules ATM Restart from the top dropdown field of the Confirm Reboot dialogue box.
Choose whether to Reboot Immediately, in Maintenance Window, or at a Specific Time from the second dropdown field in the Confirm Reboot dialogue box.
Choose whether to to "Notify by email when finished" by selecting the checkbox.
Select Reboot to initiate the reboot command.
Max: 7 Amps
(840 Watts at 120 VAC)
